Streaming locators

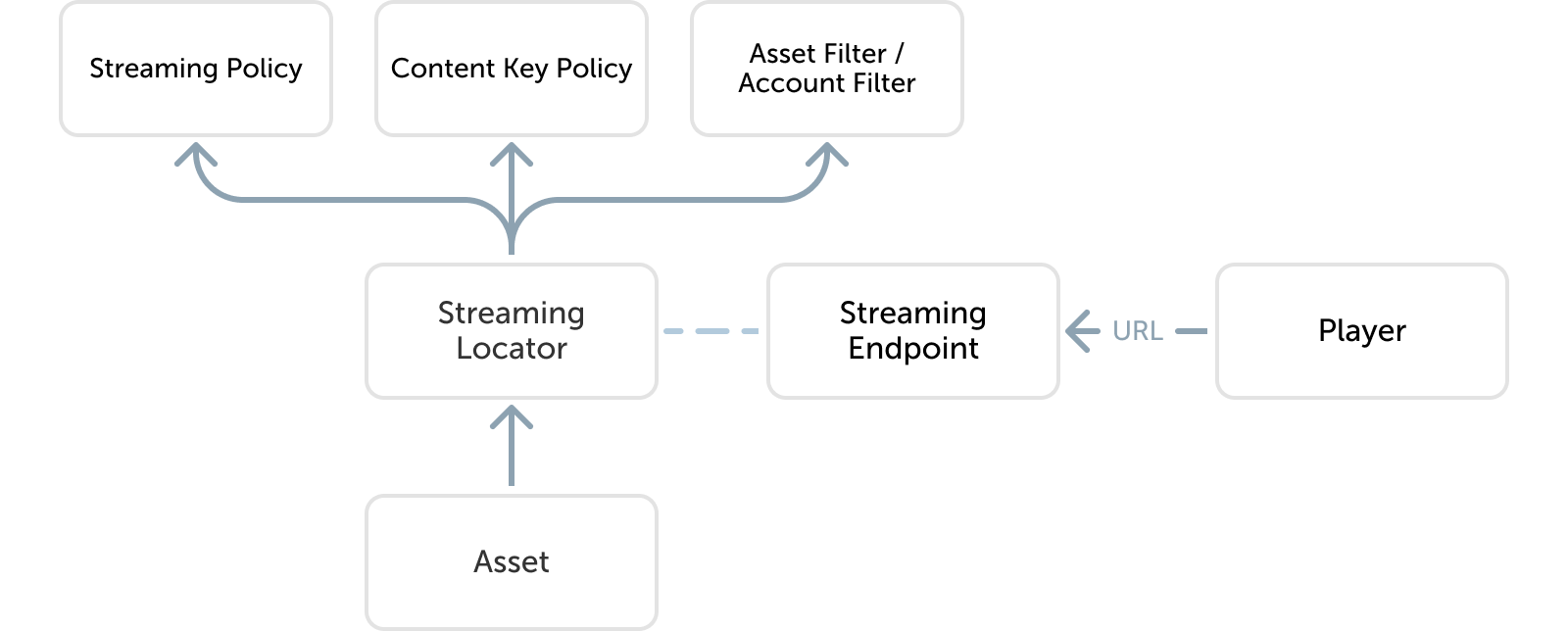

A streaming locator publishes the files in an asset under a selected streaming policy. The policy controls available protocols, downloads, and encryption, while optional filters can modify the generated manifest.

A locator provides the path that a streaming endpoint uses to deliver an asset or live recording.

The final URL pattern for your video will be a concatenation of the Streaming Endpoint domain name and the Streaming Locator that links to your asset. The names you assign to each resource will determine the path URL of your video.

To make video assets available to clients for playback, you must create a Streaming Locator and then build streaming URLs once you have a functional Streaming Endpoint.

By default, a streaming locator is valid immediately and remains valid until it or its asset is deleted. You can set an expiry and other properties to control when and how clients access the content.

When creating a Streaming Locator, you must specify an Asset name and a Streaming Policy name. The Streaming Policy can optionally point to a Content Key Policy for encryption. See Content Keys for more information.

A Streaming Endpoint must exist to play your Streaming Locator and enable you to scale your output based on viewer concurrency.

Streaming Locators can have a many-to-one relationship with a Streaming Policy, allowing different Streaming Locators to provide different start times and connection types to different clients while all using the same permission and duration settings.

Streaming formats and encryption modes

The following combinations of streaming formats, DRMs, and encryption modes are currently supported in MK.IO:

DRM	HLS (CMAF)	DASH (CMAF)
ClearKey	cbc	cbc & cenc
Widevine	cenc	cenc
PlayReady	cenc	cenc
FairPlay	cbcs-aapl	n/a

Streaming Policies

Streaming Policies enable you to define streaming protocols and encryption options for your Streaming Locators. With MK.IO, you get several predefined Streaming Policies out of the gate for trial or production use.

Streaming Policy	Description
Predefined_ClearStreamingOnly	Clear streaming only
Predefined_ClearKey	Enable HLS/DASH encrypted with envelopeEncryption with MK.IO issuing the content key.
Predefined_MultiDrmCencStreaming	Enable streaming with DASH encrypted with commonEncryptionCenc with MK.IO issuing the PlayReady and Widevine license
Predefined_MultiDrmStreaming	Enable streaming with DASH encrypted with commonEncryptionCenc with MK.IO issuing the PlayReady and Widevine licenses, or for allowing streaming with HLS encrypted with commonEncryptionCbcs with MK.IO issuing the FairPlay license.
Predefined_DownloadOnly	Download only
Predefined_DownloadAndClearStreaming	Download and clear streaming

You can also create your own Streaming Policies if the predefined policies do not meet your needs.

Streaming URLs

The URLs for streaming content may be obtained either from the UI or by calling the listPaths endpoint on the streaming locator API resource.

The overall structure of the streaming URL is:

/<streamingLocatorID>/<serverManifestName>.ism/manifest(<options>)

The supported options are:

format=m3u8-cmaf for HLS with CMAF segments
format=mpd-time-cmaf for DASH with CMAF segments
filter=... with a semicolon-separated list of Asset Filters or Account Filters to be applied
encryption=cbc for AES-128 encryption scheme (AES CBC full-segment encryption)
encryption=cbcs-aapl for CBCS encryption scheme (AES CBC sample-based encryption)
encryption=cenc for CENC encryption scheme (AES CTR sample-based encryption)
start=... specifying the start of playback in a live event or recording (ISO8601 UTC)
end=... specifying the end of playback in a live event or recording (ISO8601 UTC)
vbegin=... specifying the start of playback in a VOD asset (ISO8601 duration)
vend=... specifying the end of playback in a VOD asset (ISO8601 duration)

For example:

/fecebb23-46f6-490d-8b70-203e86b0df58/bigbuckbunny.ism/manifest(format=m3u8-cmaf,encryption=cbcs-aapl,filter=myAccountFilter;myAssetFilter)

Download URLs

The URLs for download content can be obtained either from the UI or by calling listPaths on the Streaming Locator resource in the API.

Use a download policy when a client needs direct access to files in an asset. Common uses include moving content into an editing or post-production workflow, downloading generated thumbnails or subtitles, and supporting compatible progressive-download clients.

The download URL has a simpler structure with no options:

/<streamingLocatorID>/filename

For example:

/fecebb23-46f6-490d-8b70-203e86b0df58/Thumbnail1_000001.png

Playback availability window

The availability of the Streaming Locator for playback can be constrained to a specific time window using the startTime and endTime fields in the Streaming Locator resource via the API or the Expiration time field in the UI.

If a request is made for the Streaming Locator before the start time, the Streaming Endpoint will respond 404 Not Found.
If a request is made for the Streaming Locator after the end time, the Streaming Endpoint will respond 410 Gone.
