LDAP management

LDAP configuration

By default, accessing the Controller user interface is restricted to people that have a user account defined through the MediaKind system center. You can also configure the user access by retrieving user credentials from an existing LDAP server directory.

1. Log in as a user with Administrative privileges.

2. Click in the upper right corner of the window.

3. Select Settings. The Settings page displays 5 tabs:

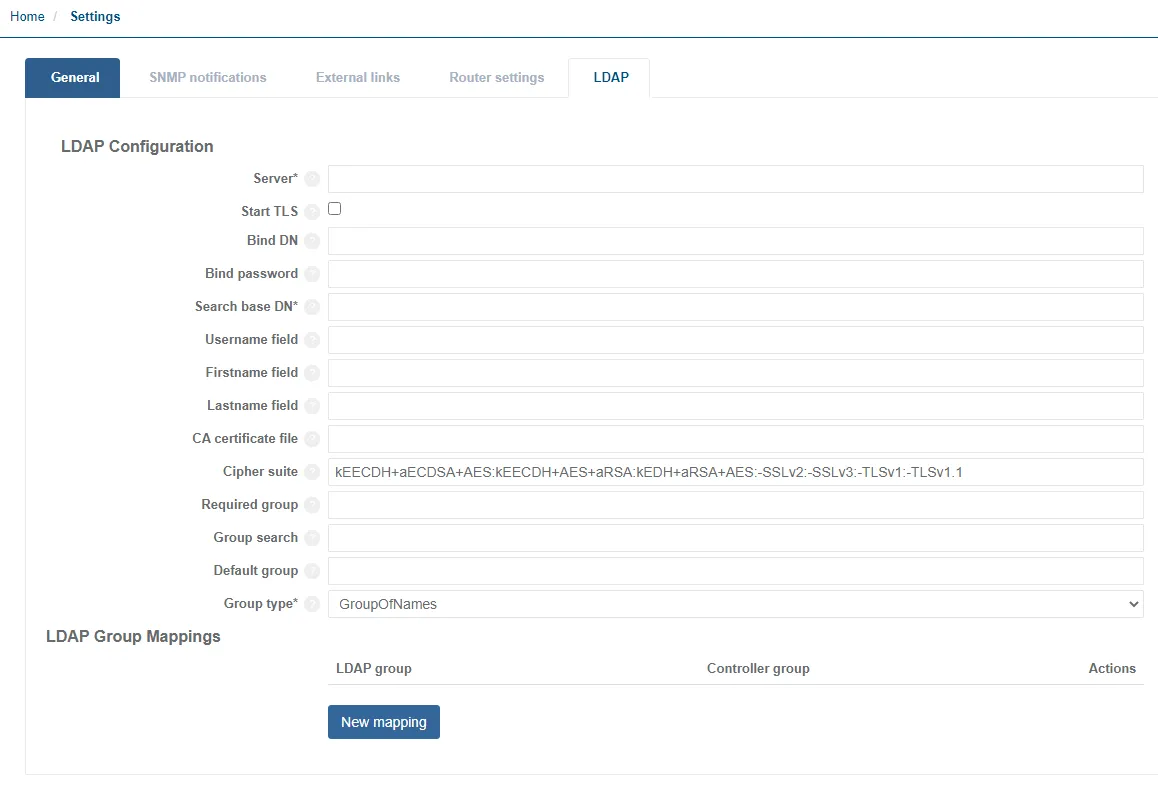

4. In the LDAP tab, configure the LDAP settings to integrate with the local LDAP server.



Loading LDAP certificates

If LDAP certificates are being loaded, configure LDAP on the settings page, then load the certificates.

1. On the controller server, place the LDAPS certificates in /etc/pki/ca-trust/source/anchors/

2. Run the following command:

   update-ca-trust extract

   This will extract it to the standard OS trust store location (default path used in the controller UI):

   /etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem

3. Edit the config file to set the right values:

   /opt/mediakind/utility/bin/controller/ldaps.conf

   The conf file must contain the fully qualified domain name for the LDAP server (same as in the certificate) and the IP address of that server.

   ###############################################################################
   #                                                                             #
   # Config file used by add-ldaps-certs.sh                                      #
   # Needs to be populated by the customer specific parameters                   #
   #                                                                             #
   ###############################################################################

   # newLDAPServerName must be fully resolvable
   # FQDN that matches the provided root CA
   newLDAPServerName=ldaps.sou.new
   newLDAPServerIP=10.1.1.1
   deployment=unified-ui

   LDAP Field	Description	Example value
   server	Address of the LDAP server to communicate with.	ldap://fr-my.companydomain.com:389
   Bind DN	Distinguished name to use when binding to the LDAP server; leave empty (default) for an anonymous bind.	CN=apache, OU=COM, OU=Sites, DC=companydomain, DC=com
   Bind password	Password to use for binding with protected binding; leave empty (default) for anonymous binding.	Password123
   Search base DN	DN to use when binding to the server in order to perform searches. Leave empty for anonymous binding.	OU=COM, OU=Sites, DC=companydomain, DC=com
   Username field	Name of the field to use in the LDAP search, for username matching (against LDAP attributes).	sAMAccountName
   Firstname field	Name of the field (from LDAP attributes) holding the user’s first name.	givenName
   Lastname field	Name of the field (from LDAP attributes) holding the user’s last name.  firstname_field & lastname_field shall be used together, or they will be ignored. firstname_field & lastname_field can be used to retrieve the user’s full name. This will then be displayed instead of the username once the user is logged in.	sn
   CA certificate file	Location of the CA certificate file used to verify the LDAP server’s certificate when using TLS or LDAPS.	/etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem
   Cipher suite	Open SSL-format string defining the list of ciphers to use for TLS communication.	kEECDH+aECDSA+AES:kEECDH+AES+aRSA:kEDH+aRSA+AES:-SSLv2:-SSLv3:-TLSv1:-TLSv1.1
   Required group	The LDAP group required for a user to be able to log in.	cn=lcl.cnt.dfw.di.mediakind.allowlogon, ou=Resources,ou=Groups, ou=MediaKind,ou=CP, dc=example,dc=org
   Group search	The filter used to search for required group.	dc=example, dc=org
   Default group	A Controller group assigned to a user that has logged in via LDAP. Mutually exclusive with ldap_group_mappings section.	Monitoring
   Group type	The type of group used to search through LDAP. NestedActiveDirectoryGroupType and GroupOfNames are supported if anything other than NestedActiveDirectoryGroupType it will default to GroupOfNames	NestedActiveDirectoryGroupType
   LDAP group mappings	A section that can be used to control authorisation through LDAP groups. Configure group_search (and don’t use default group). In the example, any user that belongs to the LDAP group MK_Configuration will be given the privileges for the Controller group Configuration.	LDAP group
   MK_Admin	Admin
   MK_Configuration	Configuration
   MK_Monitoring	Monitoring

4. Run the script:

   /opt/mediakind/utility/bin/controller/add-ldaps-server.sh

Running the script will restart the required containers.
