Configure Stream Conditioning

To configure your Stream Conditioning service:

• Select Services > Add service > Stream Conditioning.
• Enter a service name.

Configure the general parameters

Create the end points

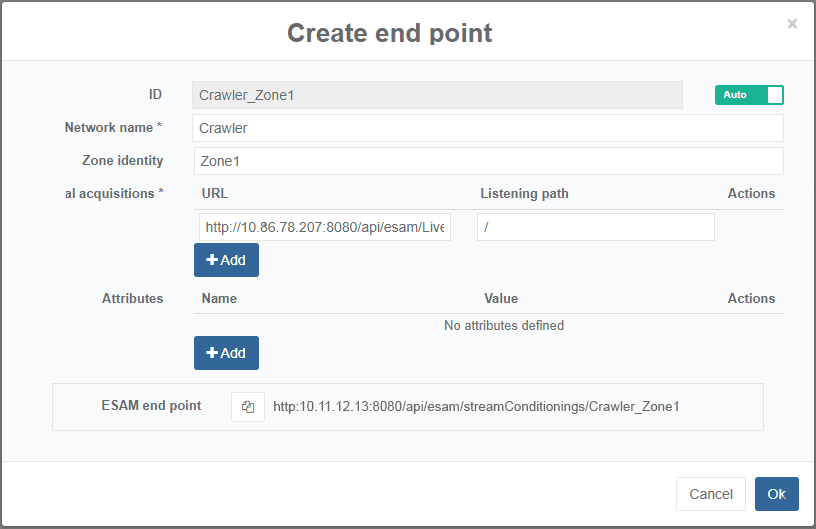

1. From the End points section, click Add. A new window is displayed.

2. Enter the appropriate value for each parameter:

   Parameter	Value	Description
   ID	Auto	Set to Auto by default. You can switch to Manual and specify and ID.Encoders or TS processors that will submit received SCTE-35 trigger to Prisma must also configure the ESAM (Prisma) endpoint. The general syntax is defined as follows: http://[prisma.controller.ip]:[prisma.controller.port]/api/esam/streamConditionings/[endPointID] Assuming that the controller managing Prisma is located at the following IP/port: 192.168.1.10:8080, with an endPoint configured at Prisma level named GAMEHD100, then the ESAM endpoint to configure will be: http://192.168.1.10:8080/api/esam/streamConditionings/GAMEHD100.
   Network name	Crawler	Identifies the signal acquisition system at a specific site on a specific channel/network feed for all of the contained ResponseSignal.This information will be shared with Live Encoder. Note: Must be the same value as the POIS network name in Live Encoder Automation parameters.
   Zone identity	Zone1	Allows receiving ESAM status notifications from Live Encoder. Live Encoder uses the ESAM status notification to tell Prisma whether the operations were successfully applied or not. Note: Must be the same value as the POIS zone identity in Live Encoder Automation parameters.
   Signal acquisitions	http://10.86.78.207:8080/api/ esam/LiveEncodings/Crawler	This URL is the Live Encoder URL that will carry ESAM message for the specified encoder service. Syntax: http://<enc.controller.ip>:<enc.controller.port>/api/esam/LiveEncodings/<enc:network_name>. The Listening path is used by the SAS End Point to return status notifications when signals are received from multiple acquisition points. it allows identifying which systems issued the response. Default value for listening path = / Example: listening path = /encoder1
   Attributes	Leave empty.	EndPoint attributes can be used for additional filtering in SCTE-224 input translations. It allows applying the translation actions to specific endPoint(s). Example: name = VIRD, value= NY

3. Click Ok to validate. The configured end point is added to the list of configured end points.

Verify and save

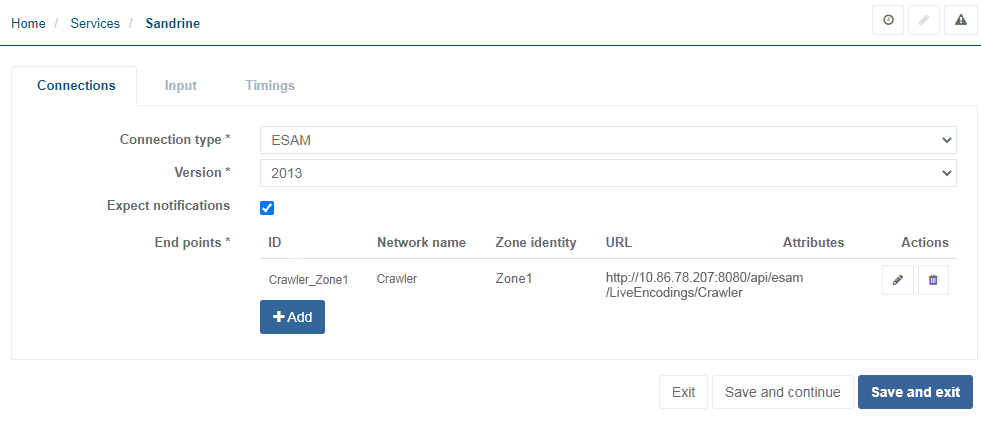

You should have the following configuration:

Click Save and exit to save and finalize your service configuration and go back to the Services page.
