Configure the Live Encoder

Configuring a Live encoding service is a 3-step procedure:

Step #1: Create a Live encoding service

Select Services > Add service > Live encoding. The service General tab is displayed.

To configure Live Encoder, follow these steps:

From the General tab, enter a service name.
Enter the name of the ESAM network interface (in our example, we are using the management interface, eno16780032).

Tick the Activate checkbox to enable the Automation features then configure the parameters:

Parameter	Value	Description
Interface Type	ESAM	Protocol used with automation system.
POIS URL	`http://10.86.89.140:8080/api/esam/` `streamConditionings/SwitchToTS_Zone1`	URL on which Live Encoder will return status to Prisma. `http://<controllerVIP>:<prisma.controller.port>/api/esam/streamConditionings/<endPointID>` Note: `<endPointID>` corresponds to the ID of the Stream Conditioning service that you previously created on Prisma.
POIS network name	SwitchToTS	ID shared with the POIS for the current channel. Same as the Network name in Stream Conditioning > Connections.
POIS zone identity	Zone1	The area ID for this channel distribution. Commonly used for regionalization. Same as the Zone identity in Stream Conditioning > Connections.
Assets directory	`/tmp/streams`	You can specify the directory where assets are stored. Must be an absolute directory path (starting by "/"). For logo and blackout files, an http url is also possible.

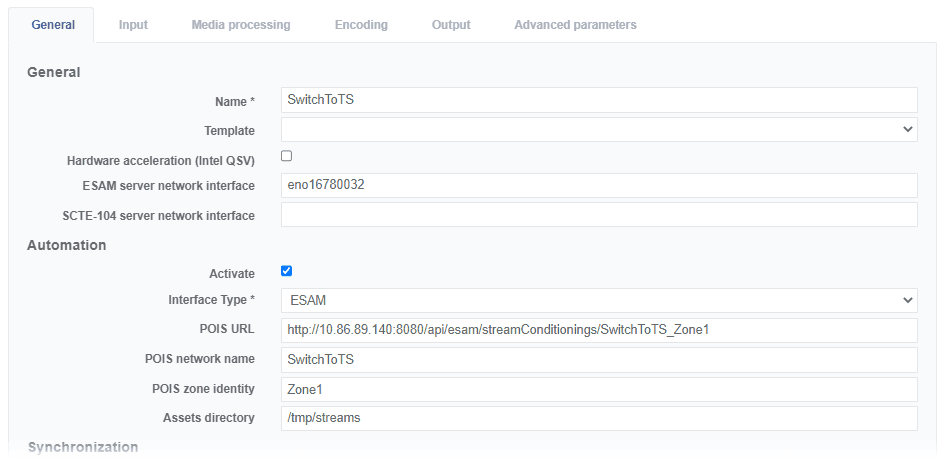

You should have the following configuration:

Open the Input tab to configure input according to your network configuration.
Configure General parameters: Select MediaComposer for Type.

Configure the Live source management parameters:

Parameter	Value	Description
Default service ID	TF1	ID of the live content that will be used at the start of the service. You can either: - select an existing ID. If required, this ID can be directly modified via the button. - or create a new ID: either immediately by clicking the + button, or later from the Settings > Live service lineup left-side menu panel. Note: IDs are defined in the lineup configuration file.
Default frame rate	24p	Default frame rate used when live input is not yet detected.

Configure the File source management parameters:

Parameter	Value	Description
Auto Return to Live	Tick this checkbox.	If checked, returns to live at end of the offline source playlist. Note: Unused in Switch to TS use case.
Return to Live on error	Tick this checkbox.	If checked, returns to live if offline source playlist cannot be loaded. Note: Unused in Switch to TS use case.

Configure the Sources.

Configure the MPEG62 TS/UDP parameters:

Parameter	Value	Description
Input redundancy	Active/Passive	Choose the redundancy settings. Two modes can be set when two multicast sources (primary and secondary) are available: - In active/passive mode, the passive source is idle and doesn't even join the multicast address or capture UDP packets. - In active/active mode, both sources capture in parallel, provide statistics on transport and demux layers, but only one source is fully decoded at any given time.
Primary interface	eno16780032	Name of the input interface used to capture the input stream. Note: In our example, we are using the management interface.
Secondary interface	Leave empty.	Name of the input interface used to capture the input stream (secondary source). Note: Only necessary in case of Active/Active redundancy.

Configure the Out of band stream to receive information from Prisma:

Parameter	Value	Description
Type	SCTE-35 OOB	Select the type of metadata.
Network name	SwitchToTS	Corresponds to the Acquisition Point Identity defined in the ESAM specification.
Zone identity	Zone1	Corresponds to the Zone Identity defined in the ESAM specification.
Recover conditioning state if failover	Leave to No	Selecting POIS enables to keep the conditioning status after an encoder failover by asking to an external system. It requires entering the POIS URL and network interface name.
Automation stream	Tick this checkbox.	Activates Live Encoder out-of band interface to communicate with Prisma.

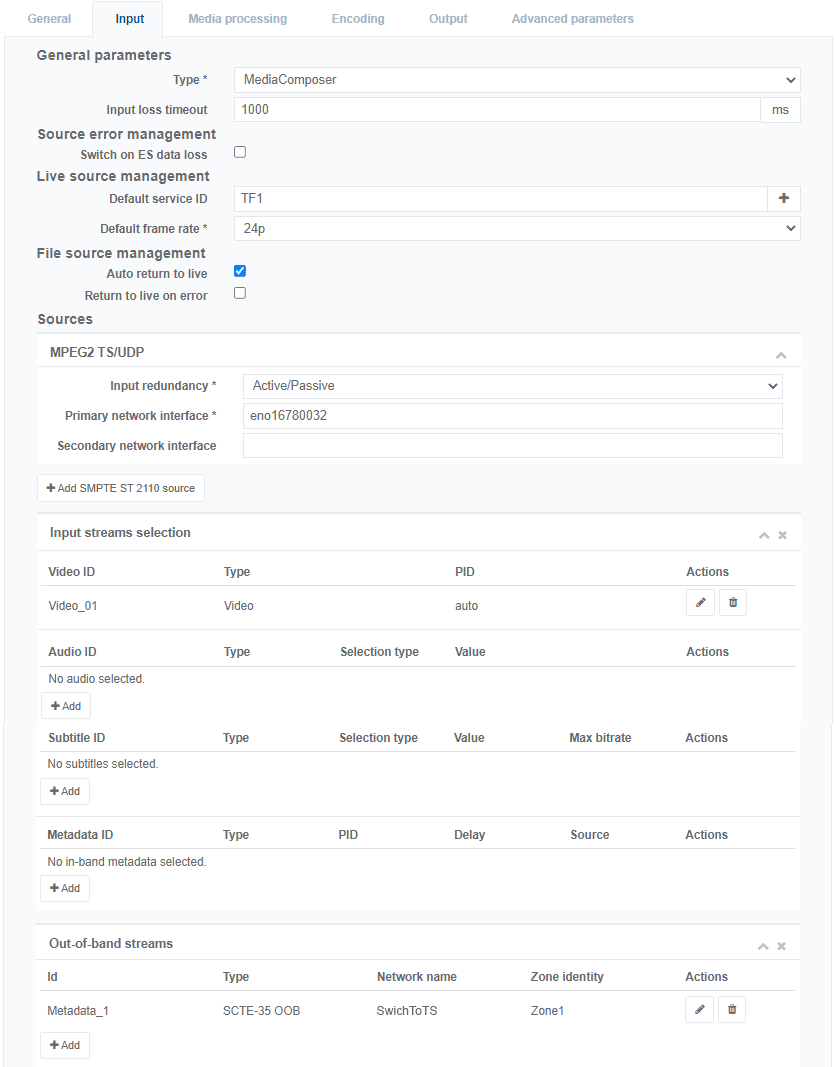

Click OK to validate. You should have the following configuration for the Input tab:
Click Save and continue to save your changes.
Leave the Media processing parameters unchanged.

From the Encoding tab, create the following streams:
- ABR video stream
- Audio stream
- Metadata stream
Click Save and continue to save your changes.

Open the Output tab then click Add an output.
Configure the General parameters according to your network configuration, especially check that GOP signaling is set to EBP based to be compliant with Live Packaging.
Leave the Common MPEG-2 TS parameters unchanged.
Configure the Output stream for this service:
1. Scroll to Output streams, then click Add.
2. Configure the output stream:
  - IP Address: address to output the stream
  - Port: port number to stream on
3. Select the encodings to include in the output stream:
  - Video encoding for this output stream
  - At least one audio encoding
  - Metadata encoding
  You should have the following configuration:
4. Click OK.
Click Save and exit to save and finalize your service configuration and go back to the Services page.

Services require a server to run. Select a server for each service before starting the service.
