Set 3G SDI output level
The 3G-SDI output level is only used when outputting 1080p video signals. Either as a single HD service or as part of a quad 3G 4K service.
Level A maps the SMPTE ST 274 video directly into a 3Gb/s serial digital interface. Level B Dual-Link divides the 1080p picture into SMPTE ST 372 Dual-Link video streams and maps them into a 3Gb/s serial digital interface.
Level B Dual-Link divides the 1080p picture into SMPTE ST 372 Dual-Link video streams and maps them into a 3Gb/s serial digital interface.
-

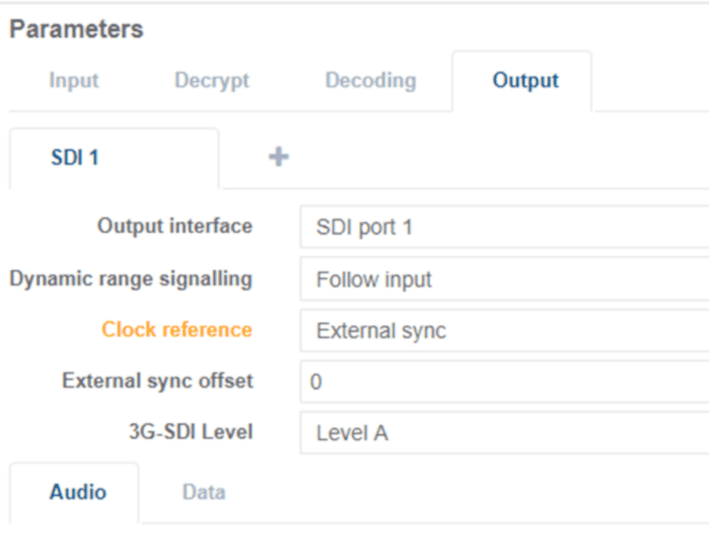

From the Home page, select the RECEIVER item from the required feed then click .
-
From the Parameters section, select the Decoding tab.
-
Select a 3G-SDI Level.
** When 3G-SDI Level is set to Level B Dual Link and the video format is 1080p or 2160p, the data will be inserted into the nth line of each field of the digital interface in Link A. For example, if set to Line 9, the data will be inserted into line 9 and line 572 of the digital interface of Link A.
