Monitoring the Reliable Transport service
Service alarms
The user interface allows you to access active and cleared alarms list for each service.
Alarms information can be accessed for any service, either started or stopped, by clicking the "Alarm" button in front of each service.
If a service is running, information about Active alarms as well as Alarms history is available. If a service is not running, only the Alarms history is available.
For each running service:
- If no alarms are active, the corresponding line on the Services page will show the alarm () button in light gray on the right of the service name.
- If any alarms are active, the corresponding line on the Services page will show the alarm () button with a color indicating the level of severity.
-

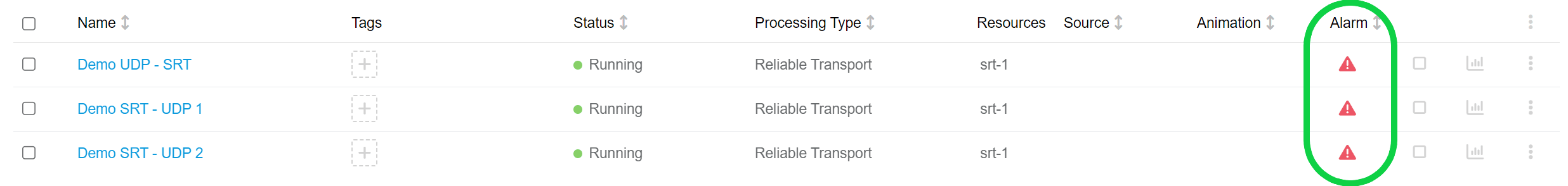

From the Services page, identify the service that you want to monitor.
-
Click the related icon in the Alarm column.
Depending on the severity of the alarm, the will appear in different colors and will display the most severe color alarm in case of multiple alarms.
- (critical alarm): the service is not running as expected, customer operations are affected.
- (major alarm): issues are affecting the service which may result in it not running as expected and could affect customer operations.
- (minor alarm): minor issues are affecting the service, but it is running as expected and customer operations are not affected.
- (notice): an expected, meaningful event has happened for the service, worth logging in the Alarms history.
From this page, you can access the following information:
- The active alarms table applied on the current server including:
- date and time of the alarm rise
- alarm description (label)
- alarm severity
- detailed information
- The alarm history table including:
- date and time of the alarm rise
- alarm description (label)
- alarm status
- alarm severity
- server on which the service was applied when the alarm raised.
- detailed information
Alarms raised by the Reliable Transport service
| Name | Description | Values |
|---|---|---|
| No Reliable Transport input connection | Input connection cannot be established | Critical |
| No Reliable Transport input data | No packets are received in input | Critical |
| Packets skipped on Reliable Transport input | Packets have been dropped during the last 10 seconds | Major |
| Encryption error (input) | Error with input encryption configuration | Critical |
| No input connections have been established | Notice | |
| No Reliable Transport output connection | Output connection cannot be established | Critical |
| No Reliable Transport output data | No packets are being sent to output | Critical |
| Packets error on Reliable Transport output | Problems detected in the output. E.g. packets being skipped | Major |
| Encryption error (output) | Error with encryption configuration | Critical |
| No output connections have been established | Output is listening but no connections have been started | Notice |
| Maximum output connections have been established | The maximum configured number of output connections has been reached. Further connection requests will be denied. | Notice |
| Insufficient licenses available | Insufficient number of licenses available. The service will only run for a short (grace) period, after which functionality will be disabled unless licenses are provided | Major |
| Functionality disabled; insufficient licenses available | Service not running because not enough licenses are available (grace period expired). | Major |
| Connection with license server lost | Connection with the license server was lost. The service will only run for a grace period, after which functionality will be disabled unless connection with the license server is re-established. | Major |
| Functionality disabled; connection with license server lost | Service not running because connection with the license server has been lost and the grace period expired. | Major |
| License period expires soon | Additional information is provided when this alarm is raised, specifying when the current license will expire. | Major |
| Lost the required licenses while running | Licenses are no longer available for the service. The service will only run for a grace period, after which functionality will be disabled unless the required number of licenses is restored | Major |
| Functionality disabled; lost the required licenses while running | Service not running because licenses are no longer available and the grace period expired. | Major |
| Undefined Reliable Transport alarm | An unexpected error occurred for the service | Critical |
| Failed to start Prometheus metrics | Metrics are not available for this service | Minor |
Example

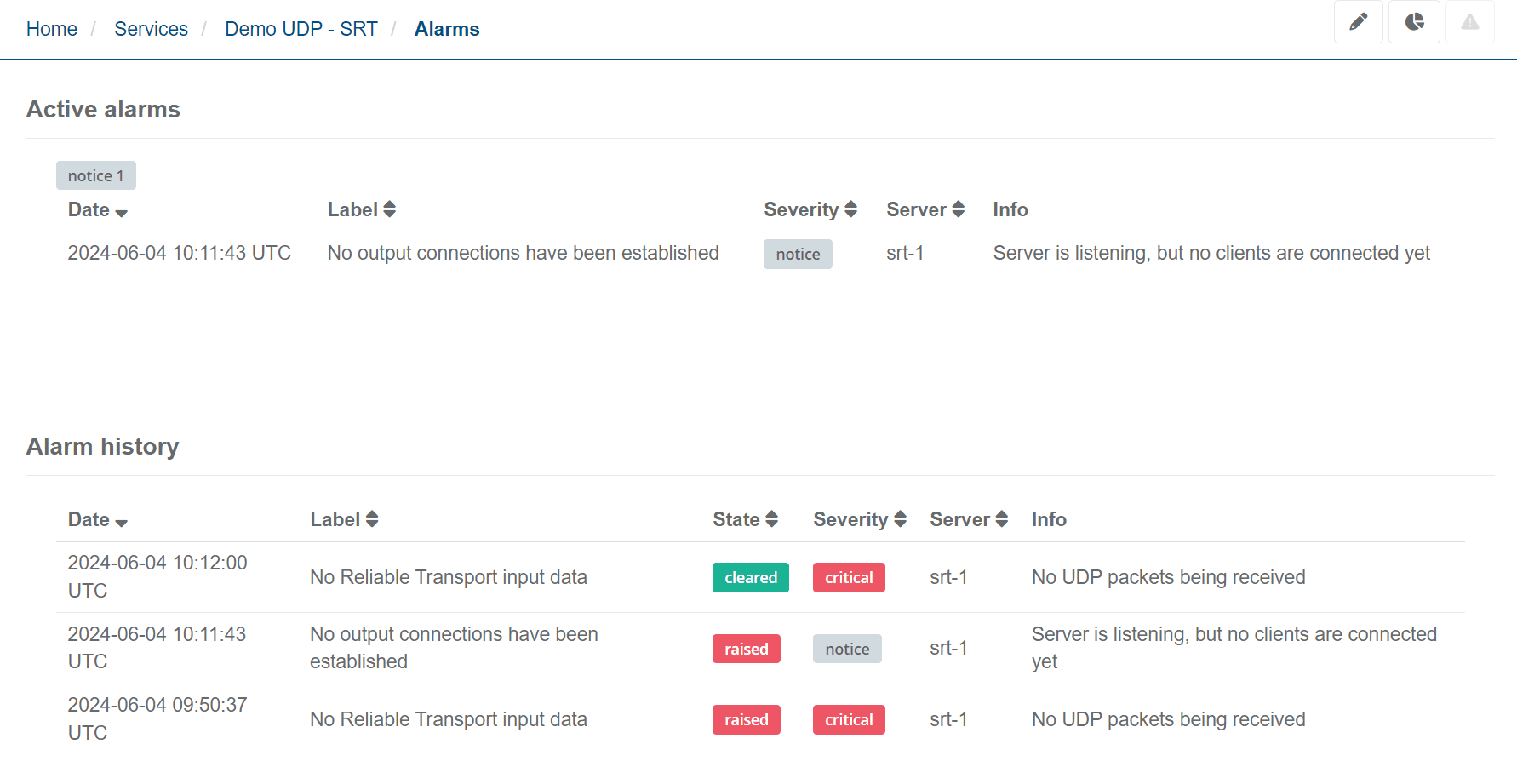

Below is an example for the alarms page of a Reliable Transport configuration using UDP input and SRT Listener output.
As per the previous sections described, both active and historic alarms are listed. The following information can be gleamed from it:
- The page URL above shows this Alarms page applies to service "Demo UDP - SRT"
- Active alarms
- There is 1 currently raised alarm with "notice" severity.
- This is an info level message advising that no outgoing connections to the output listener have been established (e.g. due to no incoming client requests).
- It has been raised at 10:11:03 UTC by server "srt-1".
- Alarm history
- Other than the currently raised alarm, a "critical" severity alarm has been raised and cleared before.
- This was a "No Reliable Transport input data" alarm, impacting the configuration running in server srt-1.
- Further info is presented identifying providing details on why the alarm is raised. In this case, "No UDP packets being received".
- The missing input alarm was raised at 09:50:37 UTC and cleared at 10:12:00 UTC.
Service statistics
When a Reliable Transport configuration is running, you can retrieve and monitor on user interface detailed statistics information.
-
From the Services page, identify the service that you want to monitor.
-
Click the related icon in the Stats column.
The is only accessible when an service configuration is associated to a server and then running.
The Statistics page is displayed showing:
- On the left side of the page, the statistics for the service input.
- On the right side of the page, the statistics for the service output.

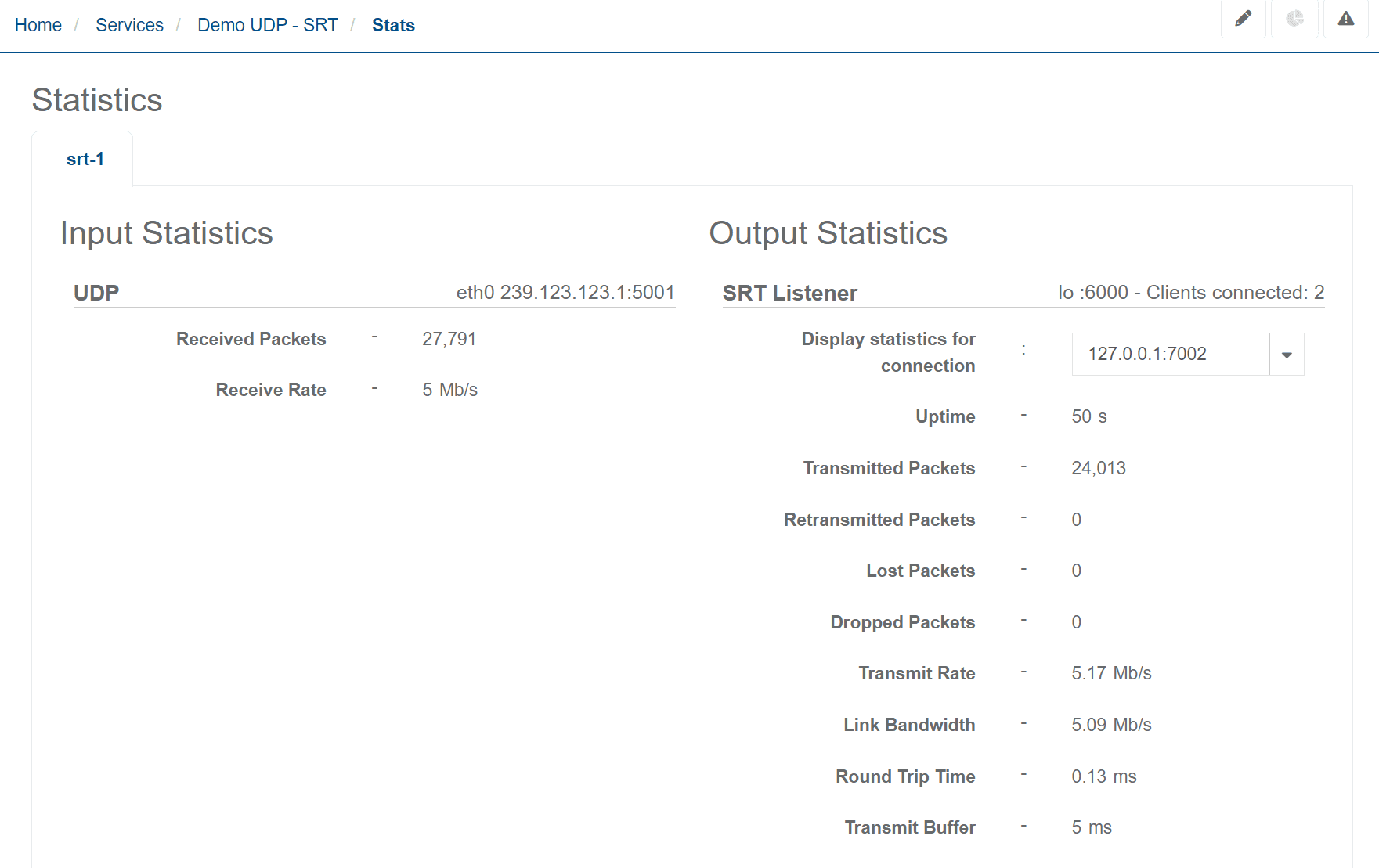

This is an example for a configuration using UDP input and an SRT Listener output. At the time, 2 clients were connected to the Listener output.
Depending on the service Input Mode and Output mode configuration, the page will show different information.
If Input/Output Mode is UDP, the following statistics will be available:
| Information | Details |
|---|---|
| Connection details | UDP source. Top-right of the Input/Output Statistics panel |
| Received/Transmitted Packets | Number of packets received/transmitted; expected to increment constantly. |
| Receive/Transmit Rate | In Mb/s. |
If Input/Output Mode is SRT Caller or SRT Listener, the following stats will be available:
| Information | Details |
|---|---|
| Connection details | Listener address and number of connected clients (output listener only). Top-right of the Input/Output Statistics panel |
| Uptime | Time since the connection was established; expected to increment constantly. |
| Received/Transmitted Packets | Number of packets received/transmitted; expected to increment constantly. |
| Retransmitted Packets | Number of packets which required retransmission; expected to be zero or increment very slowly in time. A rapid increase may indicate potential instability in the network connection. |
| Lost Packets | Number of packets lost; expected to be zero. If not zero and incrementing, there may be issues with the network connection and the quality of other services using SRT as input could be affected. |
| Dropped Packets | Number of packets dropped; expected to be zero. If not zero and incrementing, there may be issues with the network connection; quality of other services using SRT as input could be affected. It may be possible to reduce the number of dropped packets by changing the configuration for Latency and Maximum Bandwidth Overhead parameters. |
| Receive/Transmit rate | In Mb/s |
| Link Bandwidth | Bandwidth of the link in Mb/s. It should not be too much smaller than Receive/Transmit rate to prevent packet drop. |
| Round Trip Time | Measured for the current connection between caller and listener, in milliseconds. Could be used to tune the Latency and Maximum Bandwidth Overhead parameters. |
| Receive/Transmit buffer | Size of the receive/transmit buffer in milliseconds. |
For SRT Listener outputs with multiple connections it is possible to monitor individual statistics for each connection using the dropdown in front of the field Display statistics for connection.
If Input/Output Mode is Zixi Feeder or Zixi Receiver, the following stats will be available:
| Information | Details |
|---|---|
| Uptime | Time elapsed since the Zixi connection was started. |
| Packets | Total number of sent data packets, including retransmitted packets. |
| Out of order Packets | Total number of packets not in order (but will be reordered). |
| Dropped Packets | Displays the total number of packets dropped since the beginning of the stream. |
| Duplicate Packets | Total number of duplicated packets. |
| Overflow packets | Total number of overflow packets. |
| Packet rate | Transmitted/received packets per second. |
| Packets Jitter | In milliseconds. |
| Round Trip Time | In milliseconds. |
| Latency | In milliseconds. |
| Congested | Link congestion status (flag – true/false). |
| Transmit/Receive rate | In Mb/s. |
| ARQ Packets: | Total number of Automatic Repeat reQuest packets. |
| FEC Packets | Total number of Forward Error Correction packets. |
| ARQ recovered Packets | Total number of ARQ packets which were recovered. |
| FEC Recovered Packets | Total number of FEC packets which were recovered. |
| Not Recovered Packets | Total number of packets which were not recovered (FEC or ARQ). |
| Error Correction Duplicated Packets | Total number of duplicated error correction packets. |
| Error Correction Requests | Total number of error correction requested packets. |
| Error Correction Overflow | Total number of error correction overflow packets. |
If Input/Output Mode is RIST Caller or RIST Listener, the following stats will be available:
| Information | Details |
|---|---|
| Connection details | Listener address and number of connected clients (output listener only). Top-right of the Input/Output Statistics panel |
| Uptime | Time since the connection was established; expected to increment constantly. |
| Received/Transmitted Packets | Number of packets received/transmitted; expected to increment constantly. |
| Retransmitted Packets | (Output only) Number of packets which required retransmission; expected to be zero or increment very slowly in time. A rapid increase may indicate potential instability in the network connection. |
| Lost Packets | (Input only) Number of packets lost. Out-of-order packets are also treated as lost. Lost packets may be recovered. |
| Dropped Packets | (Input only) Number of packets dropped. These packets are too late to be played and can no longer be recovered. |
| Receive/Transmit rate | In Mb/s |
| Round Trip Time | Measured for the current connection between caller and listener, in milliseconds. |
| Quality | Quality of the RIST connection. 100% means all packets are sent successfully the first time. |
For RIST Listener outputs with multiple connections it is possible to monitor individual statistics for each connection using the dropdown in front of the field Display statistics for connection.
