Configure HDR signaling conversion (HEVC)

You can configure HDR signaling conversion in the encoding options, or choose to keep the initial input ‘as is’ using the Follow input option.

1. Display services.

2. Click to edit the service.

   The Input Stream Selection tab displays current stream configurations.



3. Open the Encoding tab and click to edit the video encoding.

4. Set the video codec to HEVC main 10 bits.

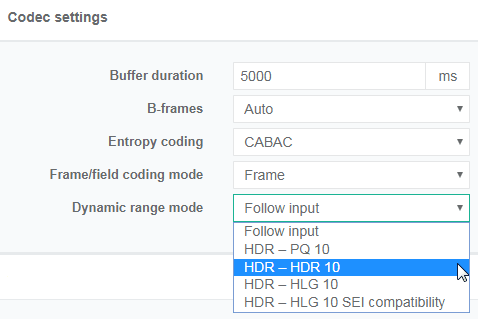

5. Expand the Codec settings section.

6. Configure the Dynamic range mode.



   The parameters display.

7. Click Apply.

   The settings are applied and the services edition page displays.

8. Save settings.
