Configuring output

Edit and add outputs

An output can contain multiple files. For example, one file per video encoding for different resolutions. Multiple audio streams may also be associated to the video stream in the same file for multiple languages.

1. Click to edit a service.

2. Ensure that Input stream selection and Encoding settings are correct.

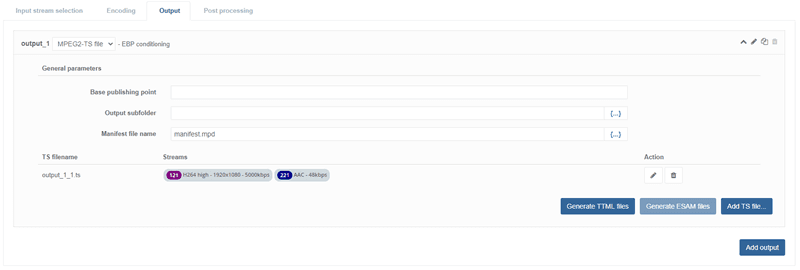

3. Open the Output tab. By default, one output is already available.

4. Select the output file format:

   • MPEG2-TS file
   • MP4 file

5. Configure the output general parameters:

   • MPEG2-TS file output general parameters
   • MP4 file output general parameters

6. Tune the output by selecting:

   1. Click to change the default video output format.

   2. Add TS file... to add another TS file to the output.

   3. Generate TTML files to include subtitles defined in the Input stream selection.

   4. Generate ESAM files to include metadata defined in the Input stream selection.

      Note: TTML and ESAM files generation only applies when the On-Demand Encoder service is then processed by a MediaKind - Packager service.

7. Click Add output to create and tune another output.

   Tip: Click to duplicate the existing output.



   A new blank output is added.

8. Click Add TS file..., Generate TTML files and Generate ESAM files to define the data to include in the output.

9. Save configurations.
