Video encoding parameters

General parameters

Parameter	Description
Rate control	Define how the bitrate is managed for this stream. Trick Play only applies to CBR.Possible values: VBR, CBR, CVQ (Constant Video quality), Statmux. - With CBR (Constant bit rate), you can stream content over a limited bit rate channel such as a network. The output stream fits in one bit rate, which you specify as a parameter. Constant bit rate means that the bit rate is constant according to the leaky bucket concept. - For more information on Statmux, see Statmux, Statistical rate control. Note: In case of H.264, the stream remains compliant with the normative HRD.
Trick play	Only available with CBR rate control.Provides a low frame rate video stream that can be used for Trick play. This option requires CBR and is not compatible with shared encoding.
Low delay encoding	Only available with CBR rate control.This mode decreases latency by forcing the encoder to use a simplified codec analysis. The video quality is impacted, and only CBR mode is allowed. Note: If activated, Buffer duration in Codec settings section is limited to Short and Custom values.
CVQ mode	Only available with CVQ rate control. Define how to manage bandwidth in CVQ rate mode. Select Average bit rate to define Target bit rate in kbps. While keeping homogeneous quality, this mode guarantees the Target bitrate over a long period of time (several hours). Select Quality level to define a Target quality using a decimal number on a scale from 1.0 to 5.0.
Target quality	Only available with CVQ rate control. Define the Target quality of the CVQ encoding using a decimal number on a scale from 1.0 to 5.0. 5.0 is the highest quality.
Pool name	Only available with Statmux rate control. Each statmux stream is included in a pool that defines the global multiplex bitrate. This parameter defines the pool this stream must be attached to.
Service name in profile name	Service name is in profile name.
Minimum bit rate	Only available with Statmux rate control. In statmux each stream is encoded in VBR. Minimum bit rate defines the lowest bit rate limit. Note: This bit rate can be changed on-the-fly.
Maximum bit rate	Only available with Statmux or VBR rate control. In statmux, VBR or CVQ mode, each stream is encoded with variable bitrate. Maximum bit rate defines the highest bit rate limit. Note: This bit rate can be changed on-the-fly.
Target bit rate	Bandwidth used to encode the video stream. Possible values: From 100 to 60000 kbps Note: - The limit is set to 150000 kbps when Hardware acceleration is set to Vega and when Resolution is set to UHD. - Video bit rate corresponds to "raw" video bit rate, and does not include bit rate overhead due to encapsulation (such as PES headers, MPEG-2 TS headers). - This bit rate can be changed on-the-fly.
Hardware acceleration	Activate hardware acceleration using optional Vega card or QSV to accelerate encoding. If enabled some parameters are unavailable. QSV can be selected in the General tabVega card allows 4:2:2 encoding (H.264 or HEVC). Vega is only available in IPTV. Note: If you select Vega, you must select the Hardware Device and the Hardware Channel.
Hardware Device	Only available when Hardware acceleration is set to Vega.Hardware device on optional Vega card used for acceleration of encode. Possible values: 1 or 2
Hardware Channel	Only available when Hardware acceleration is set to Vega.Hardware channel used on device for acceleration of encode/decode (HD only). Possible values: 1 to 4
Resolution	Define the output size of each image (length x height). Note: Resolutions are sorted by the total number of pixels per frame. You can either choose a value from the drop-down list or enter a custom resolution.
Codec	The different codecs (MPEG2, H.264, HEVC, JPEG XS) can be used to encode the content. Select a codec and its profile for each video stream.
Video quality mode	Different tradeoffs between video quality and density. UP! and UP!+ provide the highest video quality. With Adaptive quality mode the codec leverages ACT (AI Compression Technology) to ensure the best video quality while using all the available resources to process the channel. Adaptive (ACT) is an option if the service runs on constrained resources (like a Kubernetes POD with limited vCPU resources). Note: - The list of available video quality modes depends on codec, rate control, export type and resolutions values. - For Internet TV, output a mix of these presets is recommended to optimize both the VQ and the density.
Stream conditioning	Conditions stream encoding based on the metadata stream. Note: You can select several SCTE-35 streams (either in-band or out-of-band) to condition video streams.
Blackout	This blackout configuration will be applied to the related audio/video/subtitles stream.

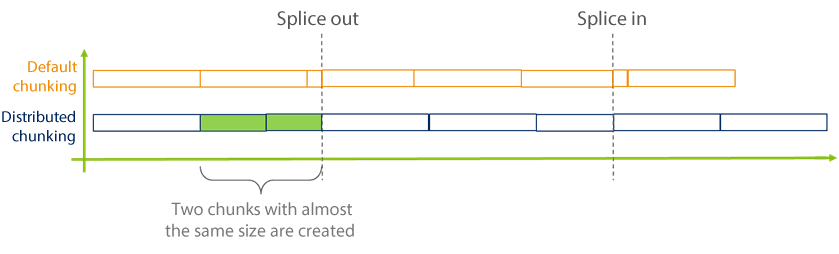

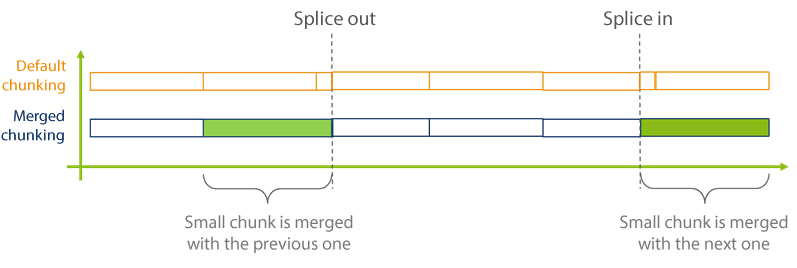

Chunking policy	Select the policy to apply when a splice occurs (ad insertion, ad replacement, blackout management, etc). The policy applies for both stream conditioning and blackout to ensure relevant chunk sizing. Distribute: chunks before the splice point are adapted to have the same duration. Subsequent GOP boundaries are modified. Merge: chunks before or after the splice point are merged. Subsequent GOP boundaries are unchanged. Chunking policy: Distribute Chunking policy: Merge

Switch to CBR parameters

Only available when Rate control is set to Statmux.

Parameter	Description
Switch to CBR	Enable switching from Statmux to CBR based on SCTE35 splice triggers.The switch relies on SCTE-35 splice commands: a Splice out is used to exit Statmux rate control and switch to CBR then a Splice in is used to switch back to Statmux. If enabled and configured, when you start the service new buttons are available in the Services > Statistics > Outputs menu: - Switch to CBR to manually switch from Statmux to CBR. - Switch to Statmux to manually switch back from CBR to Statmux.
Constant bit rate	Bandwidth used to encode the video stream
Triggering stream	Select the SCTE35 metadata stream used to trigger the switch between Statmux and CBR. Note that SCTE35 metadata stream codec must be set to conditioning.
Timeout	Timeout in milliseconds for switching back to Statmux. Disabled if not filled. Possible values: from 1s to 24h

Statmux advanced parameters

Parameter	Description
Stream priority	Ability to set the priority (or weight) of a service when it joins a statmux group. 'Normal' does not change the default behavior of the statmux algorithm. 'High' and 'Highest' will distribute more bandwidth to the video stream than normal computation of the statmux algorithm. 'Low' and 'Lowest' will distribute less bandwidth in order to favor the other streams of the group.

Codec settings

Parameter	Description
Video quality experience	Select the codec configuration for subjective or objective measurement. If you have a proprietary probe then select MSSSIM finetuning.The last algorithms integrated in our codec improve the subjective video quality: the quality of experience of the end user is increased. However, these specific fine-tuning in the encoder may decrease objective scores measured by automatic metrics such as PSNR, SSIM, MS-SSIM. If the customer wants to evaluate the video quality with one of these metrics, he can select a fine-tuning of the encode to keep high scores. If the customer uses proprietary probes, we recommend choosing MS-SSIM. Possible values: Objective: Human visual fine-tuning or Subjective: SSIM fine-tuning, MS-SSIM fine-tuning, or PSNR fine-tuning
Buffer duration	Define the size of the video buffer. Delay increases with buffer size. Encoding quality improves with buffer size. The default values offered correspond to: Short = 500ms, Standard = 1000ms, Long=2000ms. Customizable value in ms is also an option. Note: The video buffer is the standard VBV (Video Buffering Verifier), it guarantees the encoded stream doesn't overflow or underflow the decoder's buffer. Possible values: Short, Standard, Long, or Custom - If Low delay encoding is activated, Short = 500 ms (for both Internet TV and IP TV) - If Low delay encoding is not activated, Short = 500 ms, Standard = 1000 ms, Long = 2000 ms (for both Internet TV and IP TV)
B-frames	Select the number of B-frames that will be inserted between two I/IDR or P frames. B-frames are used to increase quality. They can be considered as interpolated frames between reference frames (I or P), interpolation is done using forward and backward motion vectors used to select pieces of pictures in reference frames. Modes: (1) Auto: allows the encoder to choose the number of Bframes depending on the source. (2) OFF: If no Bframes are required. (3)(4)(5) 1/2/3: If the number of Bframes must be fixed.
Coding mode	Only available with Internet TV export type. Modes: (1) Progressive. (2) Interlaced: only available with framerate 'regular' and resolution 'height' 480, 576 or 1080.<br>In case of shared encoding, only progressive is available.
Frame/field coding mode	Video encoding options: (1) Frame only: each image is considered progressive. (2) Field only: each image is considered interlaced. (3) Frame MBAFF: each image is encoded as progressive with a interlaced/progressive choice at the macroblock level. (4) Auto: recommended setting to automatically detect the best encoding option for each frame. A picture to be encoded may have interlaced structure (2 fields) or progressive structure. Even though a picture may be interlaced, video quality may be improved with frame coding when the correlation between odd and even fields is very strong.
Dynamic range mode	Follow input leaves input format unchanged. Otherwise, the format is converted if necessary: color space, tone mapping (HDR to SDR) or inverse tone mapping (SDR to HDR). HDR formats are only available with HEVC main 10 or JPEG XS 4:2:2 10 bits codec. Dolby Vision formats are only available with progressive outputs (internet TV or UHD). See restrictions and notes below.

Restrictions for Dynamic range mode:

HDR conversions are only available with HEVC Main 10 bits codec.
Dolby Vision is only available with Progressive coding mode (Internet TV or UHD).
At the input, Dolby Vision streams are not supported for ST2110, but for SDI, SDI over IP, and compressed IP.
SDR:
- Transfer characteristic: BT 709
- Colorspace: BT 709
Dolby Vision 8.1 & 5:
- Backward compatibility to HDR 10

Notes for Dynamic range mode:
If the input source is not HDR 10 (expected format to convert to DV 8.1 or DV 5), a pre-conversion is performed.

PQ 10:
- Transfer characteristic: EOTF SMPTE ST-2084
- Colorspace: BT 2020
HDR 10
- PQ 10 +
- optional metadata
HLG 10
- Transfer characteristics: Hybrid Log Gamma
- Static metadata
- Colorspace: BT 2020
HLG-10 SEI compatibility: HLG10 SEI compatibility is another way to signal HL-G10 through an SEI message instead of the default VUI parameters. This mode provides backward compatibility with UHD TV/decode system only compatible with version 1 of HEVC (not supporting HLG); that would discard the SEI and interpret the signal as SDR BT.2020.

Video processing

Parameter	Description
Detail enhancement filter	This filter boosts frequencies for improved sharpness. Use this filter when input is downscaled. Example: when converting 1080i to 720p. This filter is applied to the source before encoding starts. Compliant with the EIA-608 standard.

GOP settings

Parameter	Description
GOP policy	The GOP policy defines the way GOPs are finished.Values: (1) Open: reference frames can be picked across the GOPs. (2) Closed: all the reference frames must be in the same GOP. Impact depends on player capabilities. - Open mode provides the best video quality. - Closed mode is often used for interoperability.
Key frame period	Enter the maximum time between two key frames.<br>Key frames are inserted into the video stream periodically to synchronize the decoder and enable it to recover from errors.<br>In an OTT use case, the key frame period defines the chunk duration.<br>Setting the value at 2 seconds will generate a chunk duration of 2000 ms for a PAL/DVB output and 2002 ms for a ATSC/NTSC output. Possible values for IPTV: 500 to 10000 Possible values for Internet TV: 1000 to 10000
Key frame period policy	Enter the maximum time between two key frames.<br>Key frames are inserted into the video stream periodically to synchronize the decoder and enable it to recover from errors.<br>In an OTT use case, the key frame period defines the chunk duration.<br>Setting the value at 2 seconds will generate a chunk duration of 2000 ms for a PAL/DVB output and 2002 ms for a ATSC/NTSC output. Possible values: - Auto: adjusts the number of B-frames to have a complete sub-GOP before the key frame period, round key frame period to superior GOP size - Maximum: adjusts the number of B-frames to have a complete sub-GOP before the key frame period but round key frame period to inferior GOP size - Strict: not below key frame period ( in ms)
Low latency fragment(s) per GOP	Fragments/chunks count generated inside of the Key frame period for low latency DASHIF CMAF INGEST outputs.<br>1 means no chunks, no low latency.

Aspect ratio

Whatever the original stream aspect ratio, the best compromise is always performed by the encoder using the AFD, Video Index information. But you can use a specific aspect ratio scaling (anamorphic, letterbox, center cut or stretching.) to adapt the output to 4:3 or 16:9 aspect ratios for terminal not supporting the dynamic changes.
Aspect ratio adjustment is coupled with cropping when necessary: different modes are available depending of your needs.
Cropping can be used to remove black bars on the sides of the video, remove scrolling banners that are not readable on a handset screen or focus on a specific area of the video.

Parameter	Description
AFD	If present at the input, AFD (Active Format Description) information is added in the output stream.
Scaling	Method applied to the video when rescaling. The Anamorphic type dynamically adapts the pixel aspect ratio (width x height) per frame. Letterbox inserts black stripes to fit the target aspect ratio. Center cut adjusts the video to keep the subject in the center of the frame and removes the black stripes, Stretching adapts the pixel aspect ratio (width x height) per frame, AFD from input follows the AFD information present in the input.<br>Note: some options are not available with hardware acceleration
Cropping	Only available with Anamorphic and Stretching. Specify the cropping value in % of video from Top, Bottom, Right and Left.
Output aspect ratio	Only available with Letterbox and Stretching. Targeted output aspect ratio.
Zoom adjustment	Only available with Letterbox. Adjust the zoom level to remove the black bars at the top and bottom of the picture (% of black stripes)
Fallback option	Only available with AFD from input. Fallback value when scaling is based on AFD information and AFD is not present in the stream.

Output aspect ratio and cropping

Picture aspect ratio handling (Auto)

If the input video signal embeds WSS information and if the Aspect ratio parameter is set to Auto, MediaKind Live Encoder can extract the picture aspect ratio (PAR) information and transforms the input video as follows.

The signal always comes as 4:3, but the picture could be 16:9 anamorphic.

Video Input	WSS Flag	Processing	4:3 Video Output
	4:3 Full	None
	14:9 FullOnly available in PAL	Restore PAR and fit in letterbox
	16:9 Full	Restore PAR and fit in letterbox
	14:9 Letterbox (center) Only available in PAL	None
	16:9 Letterbox (center) Only available in PAL	None
	16:9 Letterbox (center) Only available in PAL	None
	14:9 Letterbox (top) Only available in PAL	None
	16:9 Letterbox (top) Only available in PAL	None
	4:3 Full	None
	14:9 Full Only available in PAL	Restore PAR and fit in letterbox
	16:9 Full	Restore PAR and fit in letterbox
	14:9 Letterbox (center) Only available in PAL	None
	16:9 Letterbox (center) Only available in PAL	None
	16:9 Letterbox (center) Only available in PAL	None
	14:9 Letterbox (top) Only available in PAL	None

Cropping management

Cropping is managed in a different way depending on the output aspect ratio management.

Cropping method	Parameters	Input display	Output display
Dynamic	Crop Left, Right, Top, Bottom and keep Aspect ratio
Letter Boxing	Adaptation of input 16:9 to output 4:3 zoom level 0%
Letter Boxing	Adaptation of input 16:9 to output 4:3 zoom level 50%
Stretch to fit	Crop Left, Right, Top, Bottom and Stretch

Stream metadata settings

Parameter	Description
Timing and VUI insertion	The output streams contains the Timecode and Video Usability Information (VUI), and inserts this information in SEI data and PPS/SPS data.
Timecode insertion	Passthrough the source timecode located within the NAL SEI (H.264/HEVC), within the User Data (MPEG2), or in the jxes_header() (JPEG XS).
SCTE-20	If present at the input, SCTE20 closed captions are added in the output stream or converted to SCTE20 if input is closed caption (EIA608 or EIA708) . This option is only available with IPTV export type, with Resolution ≤720, MPEG-2 Main codec with Frame/field coding mode set to Frame only.

Subtitle settings

Parameter	Description
Closed caption	If present at the input, closed captions (EIA608 or EIA708) will be added in the output stream or converted to closed captions if input is SCTE20. Compliant with the EIA-608 standard.
Burn-in	This caption burnin configuration will be applied to the related video stream. Possible values: subtitle(s) burn-in defined in Encoding > Subtitle burn-in configuration section (see Configure subtitle burn-in).

Shared encoding (factorization)

This feature aims to share the encoding process of ABR profiles with the same resolution and frame rate. The information is re-used to simplify lower bitrates encoding.

Restriction: Shared encoding is only available if Coding mode is set to Progressive (see Codec settings).

Parameter	Description
Parent encoding	The name of the parent encoding stream configuration used to preconfigure this child encoding. Processing for parent and child encodings is mutualized to optimize CPU usage. Important: Parent and child stream will have the same rate control mode (CBR or CVQ).
Target bit rate	Bandwidth used to encode the video stream. Note: Configure the parent stream with the highest bitrate, then configure child stream bitrates to be more than half of the parent bitrate.
