LDAP management

LDAP configuration

By default, accessing the Controller user interface is restricted to people that have a user account defined through the MediaKind system center. You can also configure the user access by retrieving user credentials from an existing LDAP server directory.

  1. Log in as a user with Administrative privileges.

  2. Click in the upper right corner of the window.

  3. Select Settings. The Settings page displays 5 tabs:

    • General
    • SNMP notifications
    • External links
    • Router Settings
    • LDAP

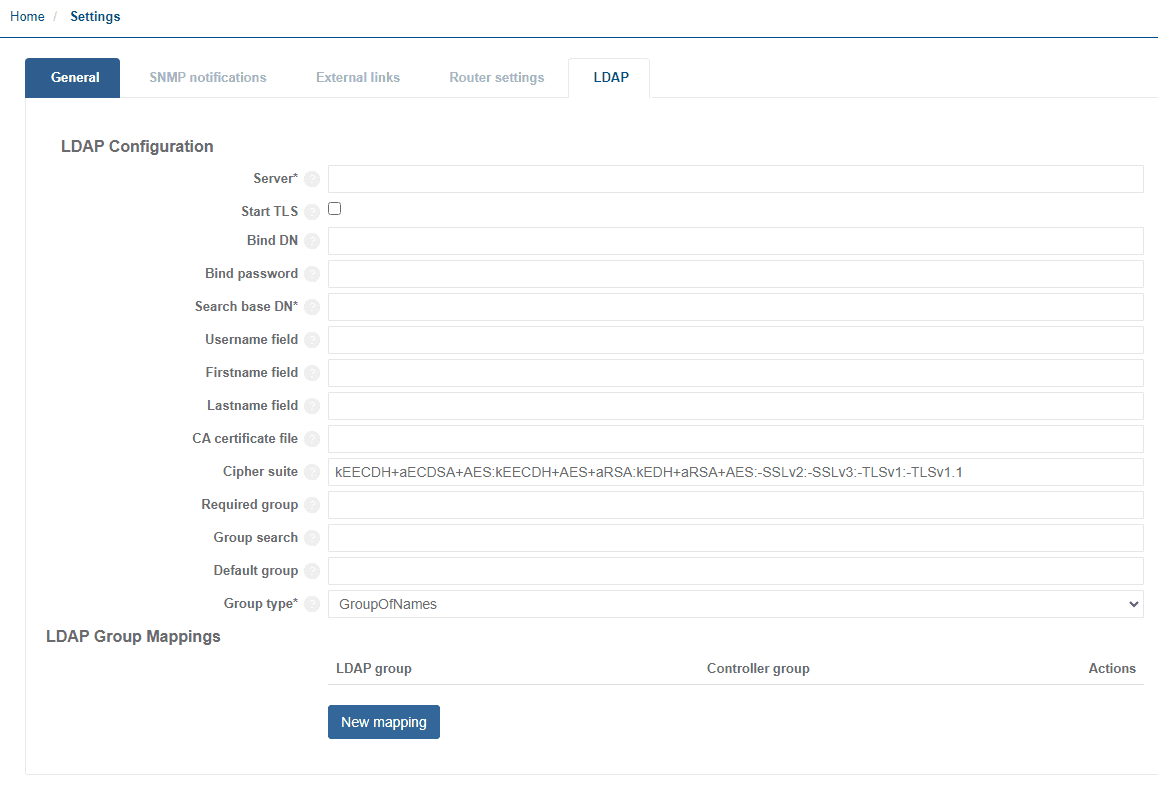

  4. In the LDAP tab, configure the LDAP settings to integrate with the local LDAP server.

⚠️

After changing the LDAP settings, for changes to take affect, the authentication service must be restarted. Either restart the Controller, or consult MediaKind Services for guidance on restarting the correct services for your deployment.

Loading LDAP certificates

If LDAP certificates are being loaded, configure LDAP on the settings page, then load the certificates.

For HA deployment, the following procedures must be done on both controller servers.

  1. On the controller server, place the LDAPS certificates in /etc/pki/ca-trust/source/anchors/

  2. Run the following command:

    update-ca-trust extract

    This will extract it to the standard OS trust store location (default path used in the controller UI):

    /etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem

  3. Edit the config file to set the right values:

    /opt/mediakind/utility/bin/controller/ldaps.conf

    The conf file must contain the fully qualified domain name for the LDAP server (same as in the certificate) and the IP address of that server.

    ###############################################################################
#                                                                             #
# Config file used by add-ldaps-certs.sh                                      #
# Needs to be populated by the customer specific parameters                   #
#                                                                             #
###############################################################################

# newLDAPServerName must be fully resolvable
# FQDN that matches the provided root CA
newLDAPServerName=ldaps.sou.new
newLDAPServerIP=10.1.1.1
deployment=unified-ui
    LDAP FieldDescriptionExample value
    serverAddress of the LDAP server to communicate with.ldap://fr-my.companydomain.com:389
    Bind DNDistinguished name to use when binding to the LDAP server; leave empty (default) for an anonymous bind.CN=apache, OU=COM, OU=Sites, DC=companydomain, DC=com
    Bind passwordPassword to use for binding with protected binding; leave empty (default) for anonymous binding.Password123
    Search base DNDN to use when binding to the server in order to perform searches. Leave empty for anonymous binding.OU=COM, OU=Sites, DC=companydomain, DC=com
    Username fieldName of the field to use in the LDAP search, for username matching (against LDAP attributes).sAMAccountName
    Firstname fieldName of the field (from LDAP attributes) holding the user’s first name.givenName
    Lastname fieldName of the field (from LDAP attributes) holding the user’s last name.  firstname_field & lastname_field shall be used together, or they will be ignored. firstname_field & lastname_field can be used to retrieve the user’s full name. This will then be displayed instead of the username once the user is logged in.sn
    CA certificate fileLocation of the CA certificate file used to verify the LDAP server’s certificate when using TLS or LDAPS./etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem
    Cipher suiteOpen SSL-format string defining the list of ciphers to use for TLS communication.kEECDH+aECDSA+AES:kEECDH+AES+aRSA:kEDH+aRSA+AES:-SSLv2:-SSLv3:-TLSv1:-TLSv1.1
    Required groupThe LDAP group required for a user to be able to log in.cn=lcl.cnt.dfw.di.mediakind.allowlogon, ou=Resources,ou=Groups, ou=MediaKind,ou=CP, dc=example,dc=org
    Group searchThe filter used to search for required group.dc=example, dc=org
    Default groupA Controller group assigned to a user that has logged in via LDAP. Mutually exclusive with ldap_group_mappings section.Monitoring
    Group typeThe type of group used to search through LDAP. NestedActiveDirectoryGroupType and GroupOfNames are supported if anything other than NestedActiveDirectoryGroupType it will default to GroupOfNamesNestedActiveDirectoryGroupType
    LDAP group mappingsA section that can be used to control authorisation through LDAP groups. Configure group_search (and don’t use default group). In the example, any user that belongs to the LDAP group MK_Configuration will be given the privileges for the Controller group Configuration.LDAP group
    MK_AdminAdmin
    MK_ConfigurationConfiguration
    MK_MonitoringMonitoring

  4. Run the script:

    /opt/mediakind/utility/bin/controller/add-ldaps-server.sh

Running the script will restart the required containers.
