Metadata encoding parameters
| Parameter | Description |
|---|---|
| Codec | Select the codec used to refine the stream object type. |
| Use POIS | Only available with Conditioning. Tick this checkbox if you want to define a POIS server. |

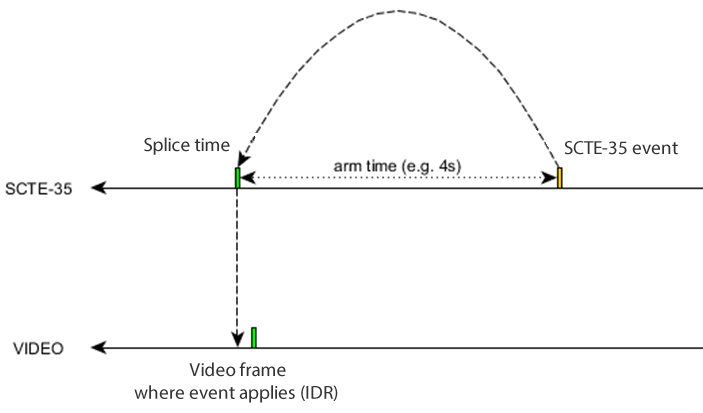

| PTS insertion compensation | Only available with Conditioning. Enable pts insertion compensation. If checked, the pts_adjustment of an SCTE-35 event will be adjusted so that the splice_time + pts_adjustment corresponds to the PTS of the video frame, as illustrated below:  Note: Arm time is the time that separates the SCTE-35 event from its execution. |
| Recover conditioning state if failover | If 'By Controller' is selected, this option enables to keep the conditioning status after an encoder failover without the need of any external system. |
POIS parameters
| Parameter | Description |
|---|---|
| Delay | If metadata stream is SCTE35, a delay adjusts the trigger time value. Possible values: From 30000 to 60.000 |
| URL | URL for the POIS (Placement Opportunity Information Service) (if any) |
| Network interface | Name of the network interface used to communicate with the POIS |
| Network name | ID shared with the POIS for the current channel |
| Zone identity | The area ID for this channel distribution. Commonly used for regionalization. |
Tissot clock metadata ID3 parameters
| Parameter | Description |
|---|---|
| Period | Target frequency of sending encoded metadata.<br>If higher than the key frame period, encoded metadata will only be present on key frames. Possible values: From 0 to 65535 ms |
Timecode ID3 parameters
| Parameter | Description |
|---|---|
| Origin | Type of the timecode used to filter SMPTE 2038 input. |
| Period | Target frequency of the Timecode ID3 in ms. Possible values: From 0 to 65535 ms |
