Configure in-band metadata in input stream

To configure in-band metadata input stream, follow these step:

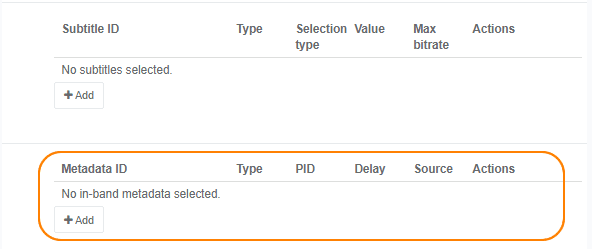

1. From the Input tab, go to the Input streams selection > Metadata ID section then click the Add button. The Metadata selection window displays.

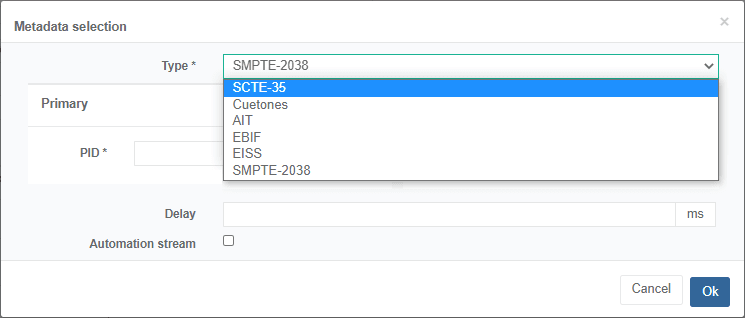

2. Select a [Type].



3. Enter or select the following information depending on the selected type:

   1. Enter a PID.

   2. If you selected SCTE-35 type, you can apply a Delay.

   3. If you selected Cuetones type, select the audio source that you previously created.

4. Click Ok to save.

   • The in-band metadata stream is added to the list of metadata.
   • The in-band metadata is automatically added to the Encoding tab.

5. Click Save and continue or Save and exit to save your changes.

• You can configure the metadata encoding.
• You can add the metadata to the output stream.
