SCTE-104/IP out-of-band metadata
Live Encoder supports out-of-band conditioning via SCTE-104/IP, on the same principle as ESAM.
- Live Encoder can receive conditioning triggers from an external server, using SCTE-104 over IP messages.
- Once received, SCTE-104 messages are decoded, sent to the targeted channel (based on DPI PID index) and converted in SCTE-35 in order to enable stream conditioning actions.

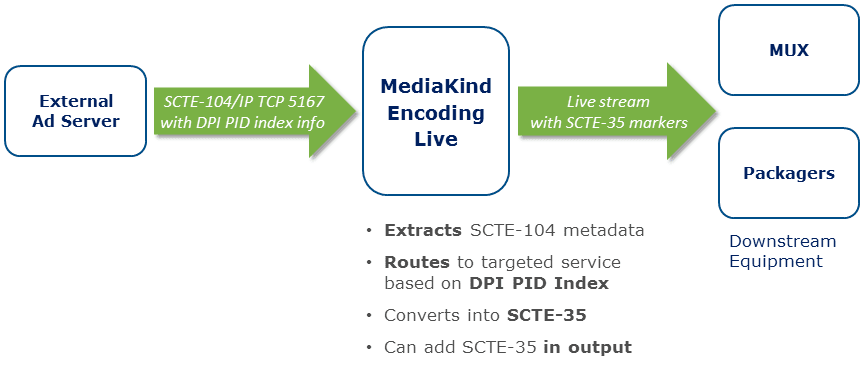

SCTE-104 out-of-band IP conditioning
Configure SCTE-104/IP out-of-band metadata
Before you start, ensure that you have added and configured the SCTE-104/IP out-of-band metadata in the input stream.
Configuring SCTE-104/IP out-of-band metadata requires multiple steps:
Configure the metadata encoding
-
From the Encoding tab, go to the Metadata encoding section.
-
For each SCTE-104/IP metadata, click in the Actions column then set the Codec to Conditioning.
-
Click Ok to validate.
Configure the video encoding
-
Go to the Video encoding section.
-
For each video stream, select the associated Stream Conditioning.

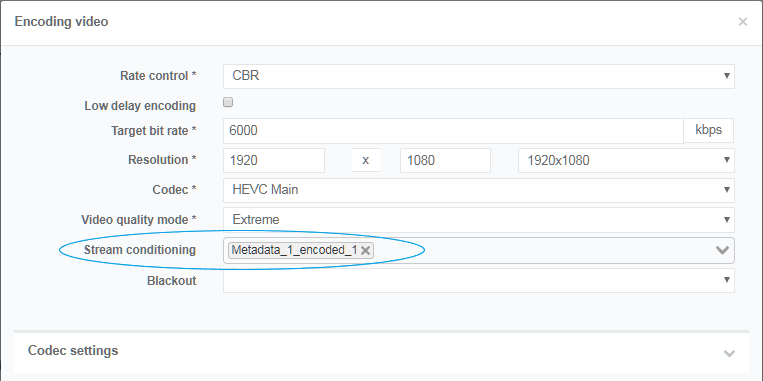

Example of video configuration -
Click Ok to validate.

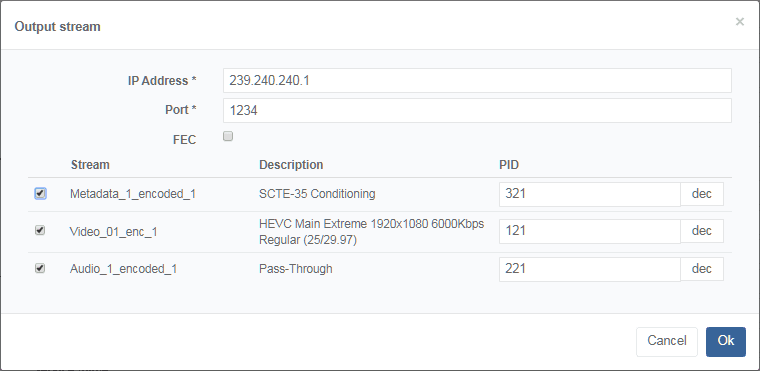

Add the SCTE-35 conditioned stream related to the SCTE-104/IP to the output
-
Go to the Output tab.
-
Go to the Output streams section, then click either the Add button (if no stream has been selected) or in the Actions column.
-
For each video stream, tick the associated Stream Conditioning.
-
Click Ok to validate. You should see the selected streams in the list of output streams.
